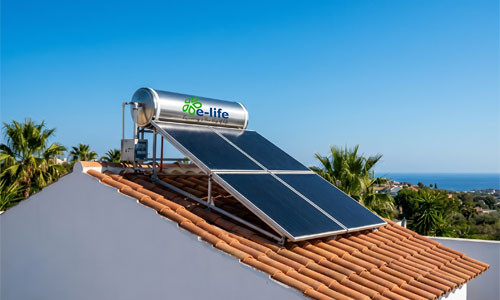

Domestic Solar Water Heaters:

                Solar water heating systems comprise several innovations and many mature renewable energy technologies that have been well established for many years. No pumping is required as the hot water naturally rises into the tank through thermosiphon flow. In a "pump‐circulated" system the storage tank can be on ground or floor mounted. A circulating pump moves water or heat transfer fluid between the tank and the collectors. SWH systems are designed to deliver hot water for most of the year.

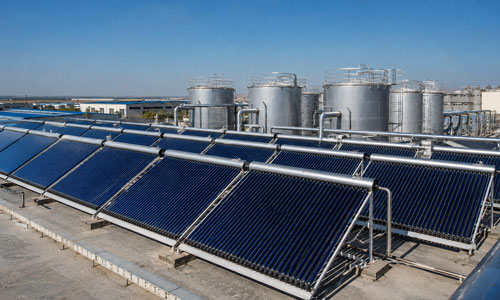

Industrial Solar Water Heater:

                Solar Water Heater can be used for industrial applications like Boilers and where hot water is used. Solar water heaters can pre‐heat water to 80-degrees C so the boilers need very less fuel to convert it to steam, thus saving a lot on fuel. Industrial solar water heater can give you ROI in just 2 yrs whereas lasting outputs for 20yrs.

FPC

Flat Plate Collectors (FPC) based Solar Water Heaters the solar radiation is absorbed by Flat Plate Collectors which consist of an insulated outer metallic box covered on the top with glass sheet. Inside there are blackened Copper/Aluminum absorb er (selectively coated) sheets with built in channels or riser tubes to carry water. The absorb er absorbs the solar radiation and transfers the heat to the flowing water upstream to the tank by  thermosyphon method. This circulation process takes place all trough the sunrise.

ETC

Evacuated Tube Collectors (ETC) based Solar Water Heaters Evacuated Tube Collector is made of double layer boro-silicate glass tubes evacuated for providing insulation. The outer wall of the inner tube is coated with selective absorbing material. This helps absorption of solar radiation and transfers the heat to the water which flows through the inner tube. Hot water being lighter rises to the insulated storage tank and an equal amount of cold water replaces this hot water. This cycle repeats as long as the sun shines.

Domestic Solar water Heater:
  • Form 100 LPD to 500 LPD.
  • For Pressure Pump(upto 5Bar) Model also available.
Industrial Solar Water Heater:
  • From 1000 LPD to 50000 LPD Available.
  • Both Inner SS304 and GI Epoxy Tanks available.
  • Can Produce output water upto 90°c for Boiler Pre heat.
  • Circulation System for Hotels and Colleges Availabe.
  • Can Customize System Design based on Clients requirement.
